VOLTAGE REGULATOR

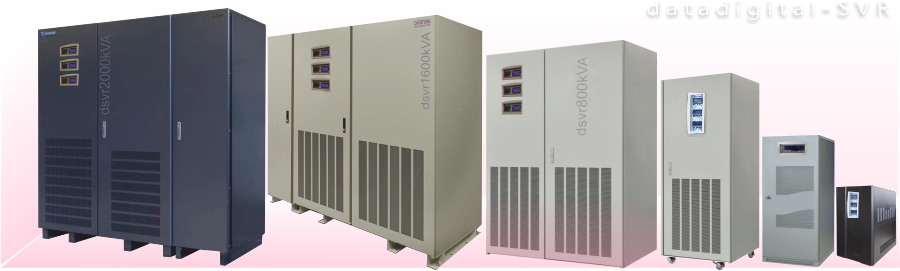

DATADIGITAL-SVR SERIES STATIC VOLTAGE STABILIZER

Long Term Use...
Datadigital-SVR Series static voltage stabilizer are the automatic voltage regulating machines which does not include moving part inside it. Static Voltage Stabilizers regulate voltage value in milliseconds with microprocessor controlled digital technology. There are no moving parts inside the device that will worn and require maintenance in time. However, in classic servo motor voltage regulators, there are moving and mechanical friction parts such as motor collectors, variable transformer brushes and brush bearings. These moving parts wear over time and the accumulation of dust in between the parts can cause fault in a short time. In addition, when the machine work continuously under load, transformer surface may become heat and wear and even voltage interruptions occur. In other words, the static stabilizers provide a long term use since the regulation is done electronically. Servo regulator burning moment.

High Reliability...
Datadigital-SVR, Static Voltage Regulators are fully microprocessor, thyristor controlled and works with digital technology. When there are abnormal conditions like over voltage, low voltage, overcurrent, over-heat and output short-circuit, stabilizer protects itself and its load. RFI and EMI filters are available as standard.



Very High Speed Correction...
Datadigital-SVR, Static Voltage Regulators instantly feel the change in the mains voltage and set the output voltage in the range of 220V + 2% within 20 milliseconds.In classic servo motor voltage regulators; Correction of the mains voltage is achieved by the brushes driven by a motor adjusting the output voltage of the variable transformer.This means that it causes wear and slow response to rapid mains voltage changes. Since the output voltage correction speed is done in seconds in classic servo type regulators, It is considered to be very slow for modern electronic devices.



High Inrush Current ...
Datadigital-SVR, Static Voltage Regulators instantly feel the change in the mains voltage and set the output voltage in the range of 220V + 2% within 20 milliseconds.In classic servo motor voltage regulators; Correction of the mains voltage is achieved by the brushes driven by a motor adjusting the output voltage of the variable transformer.This means that it causes wear and slow response to rapid mains voltage changes. Since the output voltage correction speed is done in seconds in classic servo type regulators, It is considered to be very slow for modern electronic devices..



No Distortions ...
Datadigital-SVR, Static Voltage regulators perform voltage regulation with static elements (thyristor) in the ZERO TRANSFER logic with STEP_UP / DOWN method. Current transfer is zero-pass. Therefore, it does not contain harmonics.



Protection Function

Over-Low voltage protection ;

It helps to limit the highest and lowest voltage values for the loads connected to the device. The user can control these values and cut-off time of the voltage that goes to the loads by using the front panel in case of exceeding the values



Overcurrent - Output short-circuit protection ;

If the nominal currents to be drawn by the power of the device are above the setted current tolerance values and the current and time graphs are exceeded the protection is activated. protection is provided by questioning the difference of the rate of rise of the current in the table values.

SAG-SURGE Protection ;

It is an 'effective protection circuit' which protects the receivers against sudden collapse, rise and thousands of volts spikes in microseconds. “Effective protection circuit” generally operates in the form of both symmetrical and asymmetric voltage branches. Effective protection circuit; The three-stage protection circuit consisting of fast-response suppressor diodes is supported by coarse protection with the varistors in the middle protection stage and the strong gas overvoltage conductors. Protection stages separated from each other by ohmic resistors. This allows the power to be optimally distributed in the protection circuit when the overvoltages are suppressed and the pulse currents need to be deflected.

Compact Switch (MCCB) Protection

The regulator is able to switch on / off from the panel. In cases such as over current, over voltage, low voltage and output short circuit, the device is electronically protected and the output is cut off.

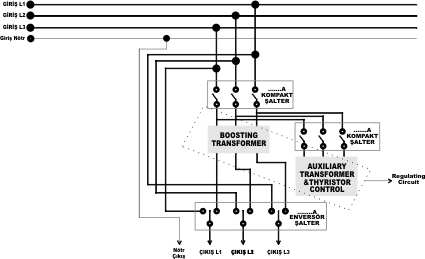

'' Booster Transformer '' Application

It is applied for 500kVA and in all powers above 500kVA. In addition to the harmonic elimination feature, 20% of the load current is passed over the semiconductor and the cost is reduced and the reliability of the system is increased.



Graphic LCD Front panel

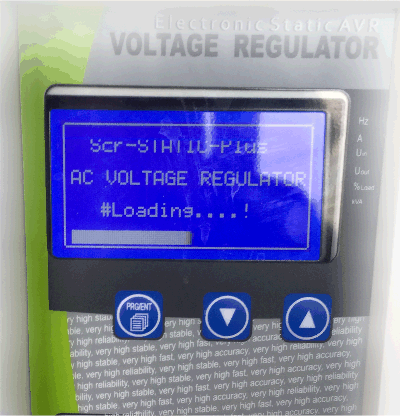

Thanks to the mimic diagram on the front panel, information about the operation status of the stabilizer can be obtained at first glance. With the LCD display which contains different language options, the input and output values (voltage, current, frequency) of the device can be read and calibrated. The lower-upper levels of the input voltage, the lower-upper levels of the regulated output voltage, the lower-upper levels of the output voltage protection, the extremely low-high voltage cut-off times, the negative-positive polarity settings for voltage calibration are the parameters presented to the user with the password control.



Usage Areas



•  In the energy line entries of hospitals, hotels, factories and industrial facilities,

•  In the energy infrastructure problematic enterprises,

•  Inductive loads including inductors such as air conditioner, fan, pump,

•  In the elevator,

•  Home, office and smart Buildings,

•  In medical devices,

•  Printing machinery, On CNC machine tools,

•  Telecommunication equipment,

•  Automation equipments, industrial robots, laser devices,

•  Textile and drying machines,

•  Packaging, bottling machines, In injection and extruders,

•  Woodworking edge cutting, edge banding, turning and milling,



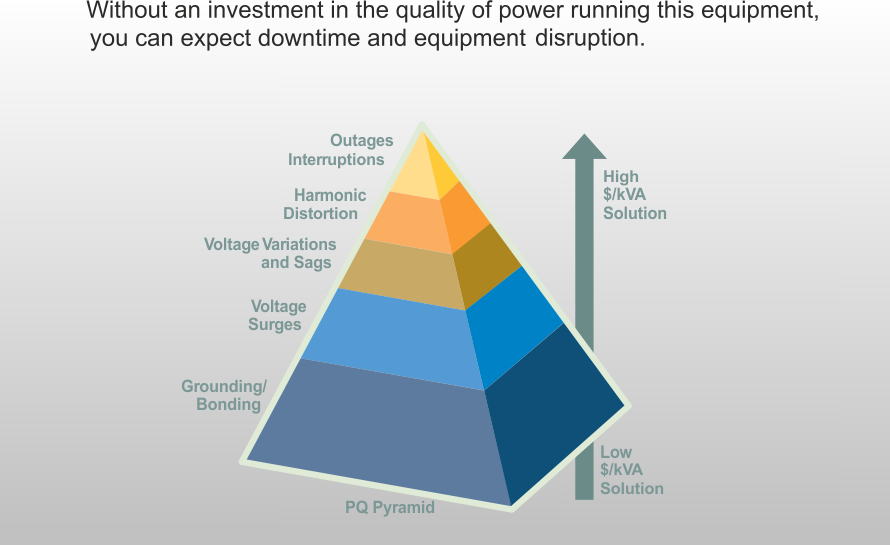

Why Static Voltage Stabilizers? Advantages of Static Voltage Stabilizers

•  Highest and newest technology

•  In static voltage stabilizers, regulation is performed by microprocessor controlled thyristors technology and electronic cards, so there is no moving parts . In servo stabilizers, regulation is performed by moving variacs and motor.

•  Copper busbars are used inside the static voltage stabilizers.

•  Excellent Voltage Regulation 20-MHz RISC

•  High reliability. They can be used safely for sensitive devices.

•  Quick response time: 20 miliseconds -, Very speed correction: 5000V/saniye.

•  Zero Current Switching /Tap Changer Thyristor

•  Protections: overload, over voltage, under voltage, peak, surge, short circuit protection

•  Protection for over current: Semi-Conductor components resist up to 10 times of the nominal current for 20 seconds.

•  EMI-RFI noise filter are standard.

•  4x20 LCD Display Screen for each phase independently: enables to control input-output voltage values, frequency values, change the voltage values within limits by entering password.

•  No distortion

•  Static Voltage stabilizers are less affected by dust. In servo stabilizers, accumulation of dust between moving parts like variacs can easily cause problems.

•  Small footprint, easy to carry. But, servo regulators are big and heavy due to the heavy and large materials like variacs.

•  Long service life & easy maintenance: Main spare parts are electronic cards and thyristors for static voltage stabilizers. That's why, maintenance is easy.

•  Efficiency >% 97



•  Permissible Overload:

1000% for 100msec









    Single Phase Static Voltage Stabilizers

    TECHNICAL SPECIFICATIONS

    Operating

    Voltage

    1F+N (130-270VAC) Standart

    1F+N (80-300VAC) Optional

    Input Voltage Ranges

    1F+N (170-260V)Standart

    (150-260V), (130-260V), (110-270V), (90-280V), (80-270V)Optional

    Output Voltage

    1F+N 220 VAC +/- %1~3 Standart (%1~2)Optionel

    ( 230V ve 240V optionel )

    Control and Process Control

    Multi-Microprocessor Control ( DSPIC )

    SCR (Thyristor) Tap Changer-Zero Current Swithing

    Full Regulation at one cycle

    Operating Frequency

    50 Hz +/-%5

    (60 Hz adjustable )

    Efficiency

    >%97 ( in nominal terms, at full load )

    Operating Temperature

    -10 C to +50 C

    ( special cooling unit)

    Protection

    Passive and electronic protection

    ( Overvoltage, undervoltage, overcurrent, peak, surge, right and spike protection)

    Display

    Grafik LCD Screen Output Voltage, Output Voltage, Output Current, Load Percentage, Output Frequency, Regulator Status and Fault Information, Overload Warning, Input Fault Warning, Output Fault Warning, etc. information can be monitored.

    Communication

    Dry contact

    ( Optional; Ethernet /USB / MODBUS TCP/IP )

    Filter

    At the entrance of the system there is an electricity noise filtering special filter system and network filters.

    By Pass

    Manuel By pass

    (Optional; Auto By Pass )

    Relative humidity

    %90 ( condensing )

    Acoustic Noise

    50 dB(A)'less

    Protection Class

    Ip 20 ( Optional; Outdoor Cabins )

    Standards EN50091-1/EN62040-1(safety) EN50091-2/EN62040-2 (EMC)


    Power

    7,5kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR11-7,5

    Vi|Vo|Io

    170-260V | 220V-/+%3 | 35A

    Dimensions

    |w:27cm|

    |L:;47cm|

    |H;50cm|

    |30KG|

    Power

    10kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR11-10

    Vi|Vo|Io

    170-260V | 220V-/+%3 | 45A

    Dimensions

    |w:27cm|

    |L:;47cm|

    |H;50cm|

    |40KG|

    Power

    15kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR11-15

    Vi|Vo|Io

    170-260V | 220V-/+%3 | 68A

    Dimensions

    |w:27cm|

    |L:;47cm|

    |H;50cm|

    |50KG|

    Power

    20kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR11-20

    Vi|Vo|Io

    170-260V | 220V-/+%3 | 90A

    Dimensions

    |w:27cm|

    |L:;47cm|

    |H;57cm|

    |65KG|

    Power

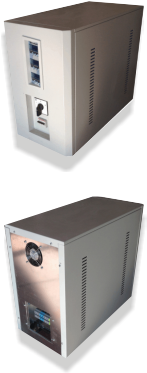

    30kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR11-30

    Vi|Vo|Io

    170-260V | 220V-/+%3 | 136A

    Dimensions

    |w:40cm|

    |L:;40cm|

    |H;70cm|

    |90KG|

    Three Phase Static Voltage Stabilizers

    (30-500kVA) TECHNICAL SPECIFICATIONS

    Operating

    Voltage

    1F+F (225-470VAC) Standard

    1F+N (140-520VAC) Optional

    Input Voltage Ranges

    1F+F (295-450V)Standard

    (260-450V), (225-450V), (190-470V), (155-485V), (140-470V)Optional

    Output Voltage

    1F+N 380 VAC +/- %1~3 Standard, (%1~2) Optional

    ( 400V ve 415V optional )

    Control and process control

    Multi-Microprocessor Control ( DSPIC )

    SCR (Thyristor) Tap Changer-Zero Current Swithing

    Full Regulation at one cycle

    Operating Frequency

    50 Hz +/-%5

    (60 Hz Adjustable )

    Efficiency

    >%97 ( in nominal terms, at full load )

    Operating Temperature

    -10 C ile + 50 C range

    ( Special cooling unit )

    Protection

    Pasive and electronic Protection

    (Overvoltage, undervoltage, overcurrent, peak, surge, right and spike protection)

    Display

    Graphic LCD Display for each Phase Output Voltage, Output Voltage, Output Current, Load Percentage, Output Frequency, Regulator Status and Fault Information, Overload Warning, Input Fault Warning, Output Fault Warning, etc. information can be monitored.

    Communication

    Dry Contact

    ( Optional; Ethernet /USB / MODBUS TCP/IP )

    Filter

    At the entrance of the system there is an electricity noise filtering special filter system and network filters.

    By Pass

    Manuel By pass

    (Opsiyonel; Auto By Pass )

    Relative humidity

    %90 ( condensing )

    Acoustic Noise

    50 dB(A)'less

    Protection Class

    Ip 20 ( Optional; Outdoor Cabinet )

    Standards EN50091-1/EN62040-1(Safety) EN50091-2/EN62040-2 (EMC)


    Power

    30kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-30

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 45A

    Dimensions

    |w:40cm|

    |L:;60cm|

    |H;70cm|

    |110KG|

    Power

    45kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-45

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 68A

    Dimensions

    |w:40cm|

    |L:;80cm|

    |H;70cm|

    |130KG|

    Power

    60kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-60

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 90A

    Dimensions

    |w:46cm|

    |L:;50cm|

    |H;115cm|

    |190KG|

    Power

    75kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-75

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 120A

    Dimensions

    |w:46cm|

    |L:;50cm|

    |H;115cm|

    |225KG|

    Power

    100kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-100

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 150A

    Dimensions

    |w:50cm|

    |L:;60cm|

    |H;135cm|

    |280KG|

    Power

    120kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-120

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 180A

    Dimensions

    |w:50cm|

    |L:;60cm|

    |H;135cm|

    |300KG|

    Power

    150kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-150

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 230A

    Dimensions

    |w:50cm|

    |L:;70cm|

    |H;165cm|

    |350KG|

    Power

    200kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-200

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 300A

    Dimensions

    |w:110cm|

    |L:;60cm|

    |H;170cm|

    |550KG|

    Power

    250kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-250

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 380A

    Dimensions

    |w:130cm|

    |L:;70cm|

    |H;170cm|

    |700KG|

    Power

    300kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-300

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 450A

    Dimensions

    |w:130cm|

    |L:;70cm|

    |H;170cm|

    |850KG|

    Power

    400kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-400

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 600A

    Dimensions

    |w:130cm|

    |L:;80cm|

    |H;170cm|

    |1000KG|

    Power

    500kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-500

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 750A

    Dimensions

    |w:140cm|

    |L:;80cm|

    |H;170cm|

    |1150KG|

    (600-3000kVA)TECHNICAL SPECIFICATIONS

    Operating

    Voltage

    1F+F (225-470VAC) Standard

    Input Voltage Ranges

    1F+F (300-450V)Standard

    Output Voltage

    1F+N 380 VAC +/- %1~3 Standard

    ( 400V ve 415V optional )

    Control and Process Control

    Multi-Microprocessor Control ( DSPIC )

    SCR (Thyristor) Tap Changer-Zero Current Swithing

    Full Regulation at one cycle

    Operating Frequency

    50 Hz +/-%5

    (60 Hz Adjustable )

    Efficiency

    >%97 ( in nominal terms, at full load )

    Operating Temperature

    -10 C ile + 50 C range

    ( Special cooling unit )

    Protection

    Pasive and electronic Protection

    (Overvoltage, undervoltage, overcurrent, peak, surge, right and spike protection)

    Display

    Graphic LCD Display for each Phase Output Voltage, Output Voltage, Output Current, Load Percentage, Output Frequency, Regulator Status and Fault Information, Overload Warning, Input Fault Warning, Output Fault Warning, etc. information can be monitored.

    Communication

    Dry Contact

    ( Optional; Ethernet /USB / MODBUS TCP/IP )

    Filter

    At the entrance of the system there is an electricity noise filtering special filter system and network filters.

    By Pass

    Manuel By pass

    (Opsiyonel; Auto By Pass )

    Relative humidity

    %90 ( condensing )

    Acoustic Noise

    50 dB(A)'less

    Protection Class

    Ip 20 ( Optional; Outdoor Cabinet )

    Standards EN50091-1/EN62040-1(Safety) EN50091-2/EN62040-2 (EMC)


    Power

    600kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-600

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 900A

    Dimensions

    |w:140cm|

    |L:;80cm|

    |H;170cm|

    |1300KG|

    Power

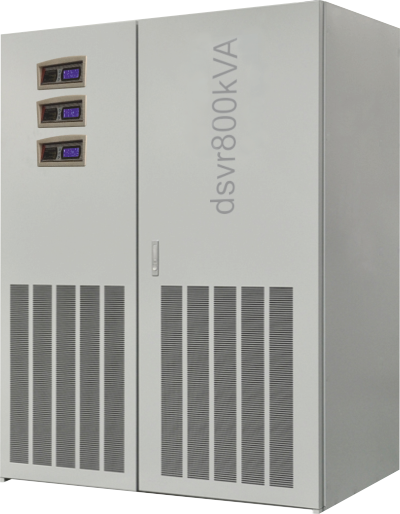

    800kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-800

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 1250A

    Dimensions

    |w:200cm|

    |L:;90cm|

    |H;200cm|

    |2000KG|

    Power

    1000kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-1000

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 1500A

    Dimensions

    |w:200cm|

    |L:;90cm|

    |H;2000cm|

    |2250KG|

    Power

    1250kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-1250

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 1900A

    Dimensions

    |w:240cm|

    |L:;110cm|

    |H;210cm|

    |2750KG|

    Power

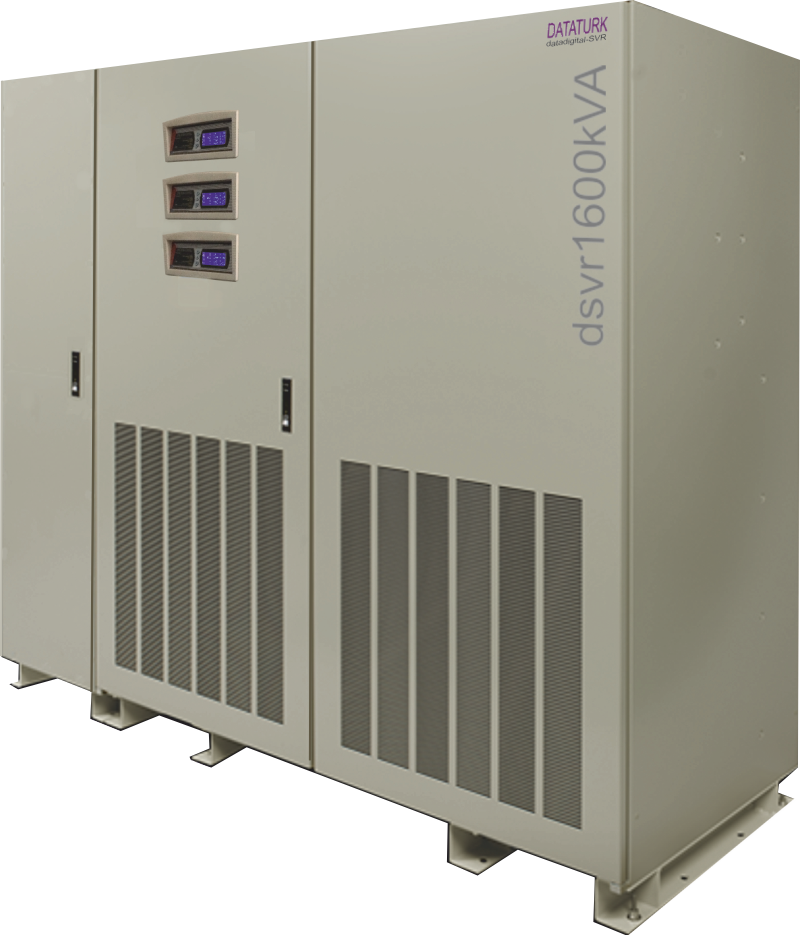

    1600kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-1600

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 2400A

    Dimensions

    |w:300cm|

    |L:;110cm|

    |H;210cm|

    |3900KG|

    Power

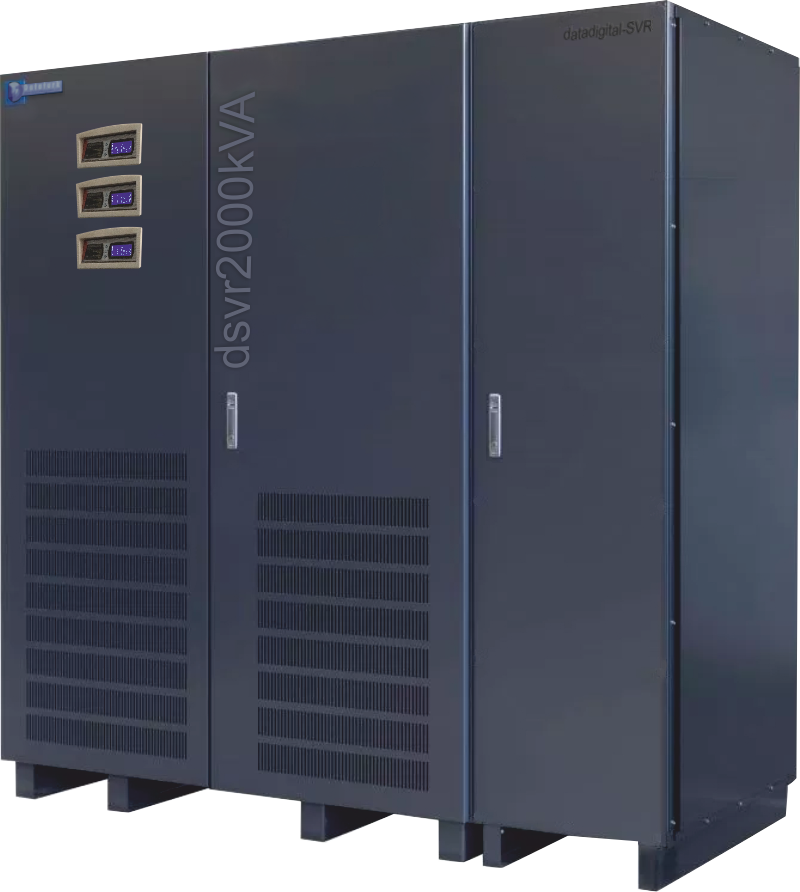

    2000kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-2000

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 3000A

    Dimensions

    |w:300cm|

    |L:;110cm|

    |H;210cm|

    |4250KG|

    Power

    2500kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-2500

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 3800A

    Dimensions

    |w:330cm|

    |L:;110cm|

    |H;210cm|

    |5750KG|

    Power

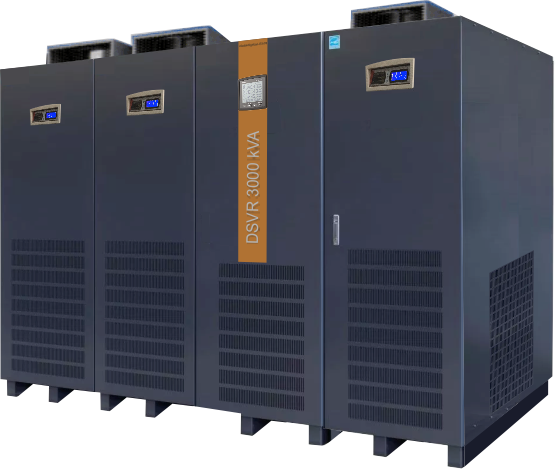

    3000kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-3000

    Vi|Vo|Io

    300-450V | 380V-/+%3 | 4500A

    Dimensions

    |w:370cm|

    |L:;120cm|

    |H;210cm|

    |6500KG|

    Power

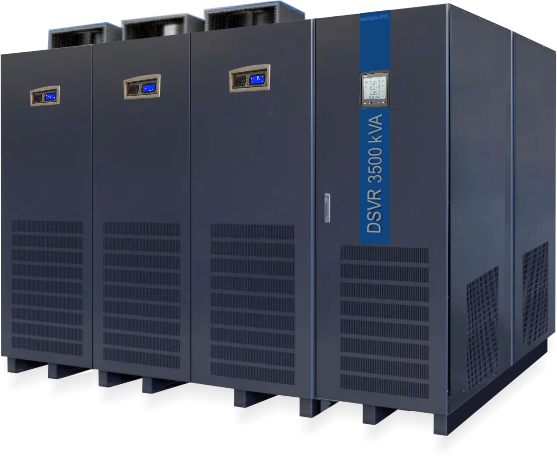

    3500kVA Static Voltage Stabilizer

    Model DATADIGITAL-SVR33-3500

    Vi|Vo|Io

    320-450V | 400V-/+%3 | 5000A

    Dimensions

    |w:500cm|

    |L:;130cm|

    |H;230cm|

    |9000KG|
